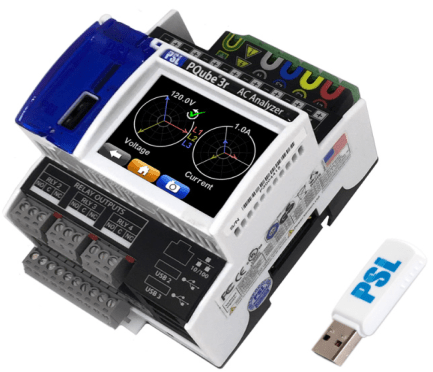

PQube® 3r Power Analyzer and Controller
Overview
If you have a sensitive process that requires a graceful shutdown when hit by a power disturbance, if you need to identify tool malfunction root cause quickly, the PQube 3r is your power analyzer of choice.
The PQube 3r records all types of AC and DC power disturbances, environmental and process parameters, and also control your process with 4 programmable relay outputs.
Easy to install, easy to use, the PQube 3r is an ultra-accurate power analyzer and a versatile controller.
FEATURES
- Installs easily with an ultra-compact footprint
- Connects directly to voltages up to 690 V
- Certified for Class A power quality according to IEC 61000-4-30 Ed3
- Computes 4-quadrant ANSI Class 0.2 revenue–grade energy on eight single-phase channels
- Monitors DC power and process parameters with four additional AC/DC analog channels
- Detects and records high-frequency impulses at 4 MHz
- Measures in real time and records 2 kHz ~ 150 kHz emissions
- Auto-detects the mains frequency, wiring configuration and nominal voltage
- Holds years of data and thousands of events via 32 GB of internal flash memory
RESULTS
- Real-time readings via protocols: Modbus and SNMP
- Events recordings and graphs : CSV, GIF, and PQDIF
- Daily, weekly, monthly trends and graphs: CSV, GIF, and PQDIF
