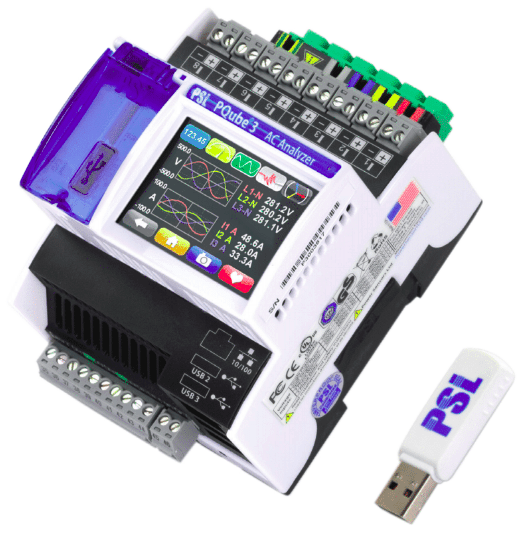

PQube® 3 Power Analyzer
Overviewwith a single instrument. It goes beyond AC power too. Records environmental data—such as temperature,
This compact instrument is simply the best power monitor and real-time sensor you can buy.
It records every type of AC power disturbance—including 4 MHz sampling of impulses—Class A certified, ultra-precise revenue-grade energy meter. Monitor up to two 3-phase loads, or eight single-phase loads with a single instrument.
It goes beyond AC power too. Records environmental data—such as temperature, humidity and barometric pressure, vibration, 3-axis acceleration—as well as process parameters, for example: torque, RPM, fuel level, water flow, and more.
Easy to install, easy to use.
Delivers ultra-precise results immediately to your inbox.
FEATURES
- Installs easily with an ultra-compact footprint
- Connects directly to voltages up to 690 V
- Certified for Class A power quality according to IEC 61000-4-30 Ed3
- Computes 4-quadrant ANSI Class 0.2 revenue–grade energy on eight single-phase channels
- Monitors DC power and process parameters with four additional AC/DC analog channels
- Detects and records high-frequency impulses at 4 MHz
- Measures in real time and records 2 kHz ~ 150 kHz emissions
- Auto-detects the mains frequency, wiring configuration and nominal voltage
- Holds years of data and thousands of events via 32 GB of internal flash memory
RESULTS
- Real-time readings via protocols: Modbus and SNMP
- Events recordings and graphs : CSV, GIF, and PQDIF
- Daily, weekly, monthly trends and graphs: CSV, GIF, and PQDIF
