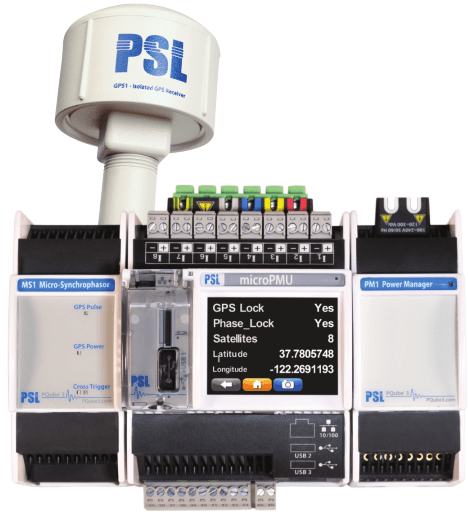

Micro PMU
Overview
Measure and understand the complex and dynamic power flows in distribution grids and microgrids with the microPMU.
The microPMU is like a microscope that has micro-second resolution and ultra-precise accuracy needed for distribution grid applications.
The microPMU is ideal for projects that need ultra-precise synchrophasor measurements for investigating stability and impedance questions. The microPMU can also be used for real-time control applications using the IEEE C37.118.2-2011 interface.
Applications
- Monitor and understand stability of microgrids or distribution grids, and backup power systems
- Event identification and characterization
- Topology change detection (open/closed state of switches)
- Detection of cyber attacks rehearsals at substations
FEATURES
- Ultra-accurate phasor measurements : TVE 0.01%
- Simultaneous recording and streaming of synchrophasors
- Fast recording / streaming rate : 100/sec at 50Hz and 120/sec at 60Hz
- Voltage and current phasors, frequency , active / reactive powers, power factor
- Streaming according to C37.118.2-2011
- Fully compatible with OpenPDC, and with PSL microPMU plotting application software
- 30 days of micro-synchrophasor measurement stored in internal memory
- Recordings can be downloaded via FTP
- Configuration / firmware update via FTP or Web pages (HTTP)
- Ultra precise mode (for grid stability analysis) or low latency mode (for control applications)
- Easy installation (can be installed in electrical panels, on distribution poles, pad mount transformers…)
- Supports connections via PTs and CTs
- F ully isolated GPS receiver / antenna with cable delay auto-compensation
